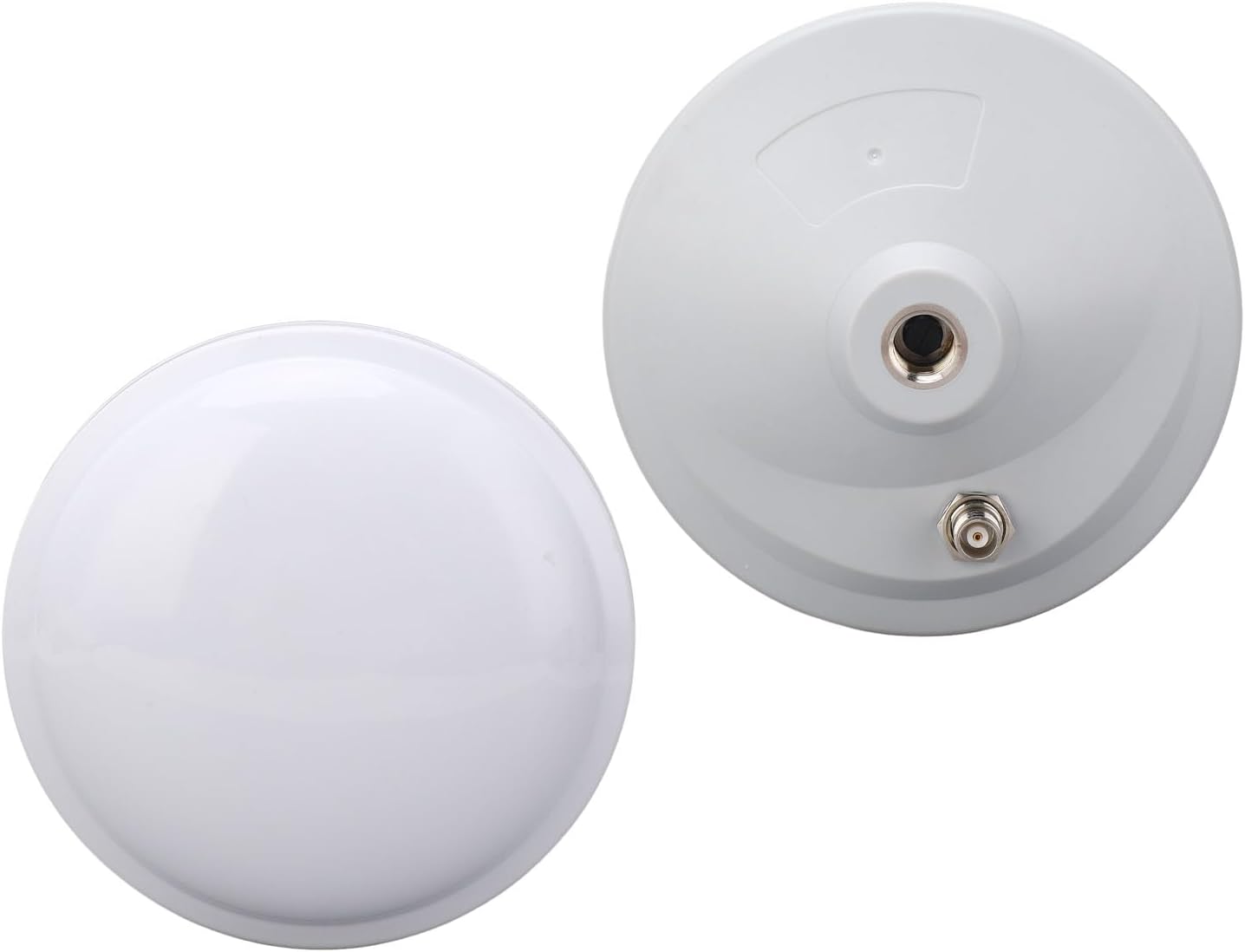

FTVOGUE GNSS Surveying Antenna IP67 Navigation Antenna with Front Filtering Technology for Precision Machined Positioning BDS GPS GLONASS Galileo

[High Positioning] Supports BDS GPS GLONASS Galileo with phase center error ≤2.0mm for millimeter-level surveying accuracy. [Front Filtering Technology] Built-in anti-interference filter and 40dB low-noise amplifier ensures stable signal in complex environments. [IP67 Design] ABS housing withstands -40°F to +176°F temperatures and 95% humidity for outdoor durability. [Wide Compatibility] Works with 1154MHz-1615MHz frequency bands covering all major satellite systems worldwide. [Easy Installation] Directly mountable antenna with 360° horizontal coverage angle for flexible deployment in construction or farming. Item Type: GNSS Measuring Antenna Material: ABS Support Satellite Signal: BDS: BI, B2, B3; GPS: LI, L2, L5; GLONASS: GI, , G3; Galilco: El, E2, E5a, E5b, E6, L-band Operating Frequency Band: 1154MHz-1300MHz, 1551MHz-1615MHz Impedance Matching: 50 Ohm Polarization Mode: Right Circular Polarization Antenna Axes Ratio: ≤3dB Horizontal Coverage Angle: 360° Phase Center Error: ≤2.0mm Low Noise Amplifier Gain: 40±2dB Noise Figure: ≤2.0dB Output VSWR: In Band Flatness: ±2dB Operating Voltage: DC3-16V Operating Current: ≤35mA Operating Temperature: -40℃-+80℃ Storage Temperature: -45℃-+85℃ Humidity: 95% Non Condensing Protection Grade: IP67 1 x GNSS Measuring AntennaBrackets and cables are not included.

• [High Positioning] Supports BDS GPS GLONASS Galileo with phase center error ≤2.0mm for millimeter-level surveying accuracy.
• [Front Filtering Technology] Built-in anti-interference filter and 40dB low-noise amplifier ensures stable signal in complex environments.
• [IP67 Design] ABS housing withstands -40°F to +176°F temperatures and 95% humidity for outdoor durability.
• [Wide Compatibility] Works with 1154MHz-1615MHz frequency bands covering all major satellite systems worldwide.
• [Easy Installation] Directly mountable antenna with 360° horizontal coverage angle for flexible deployment in construction or farming.
