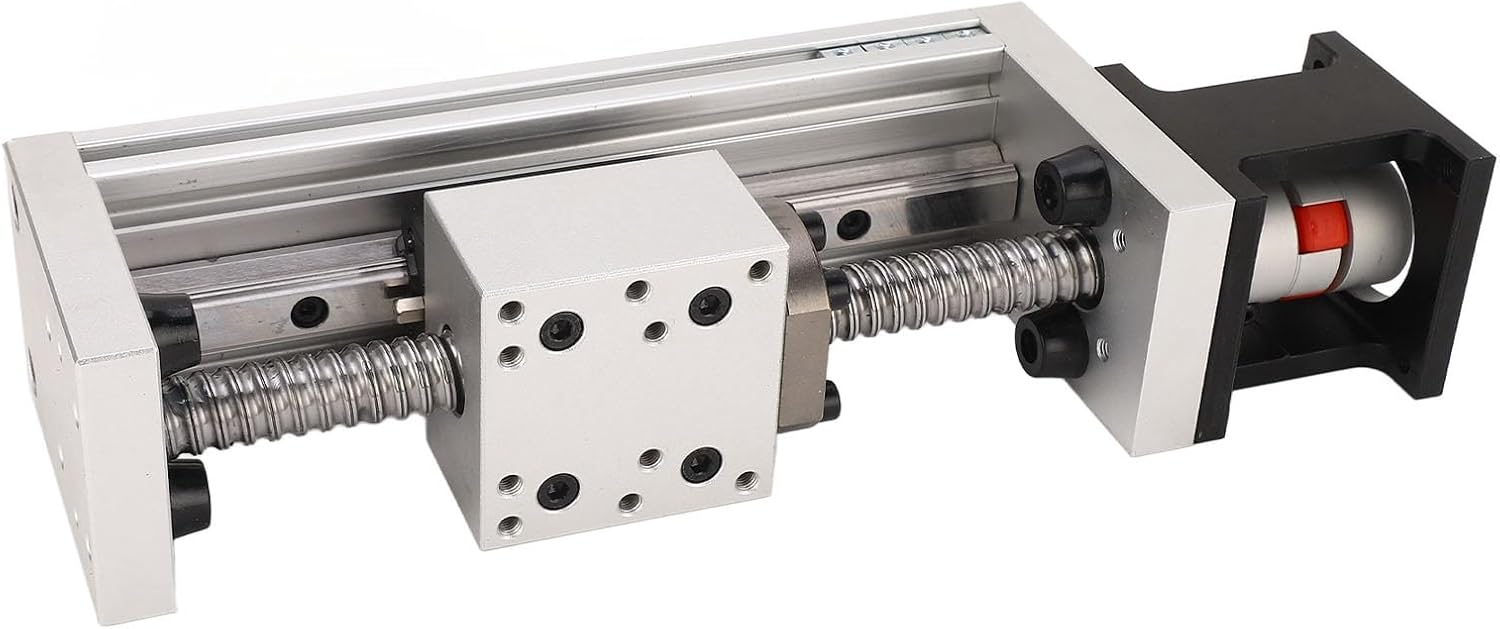

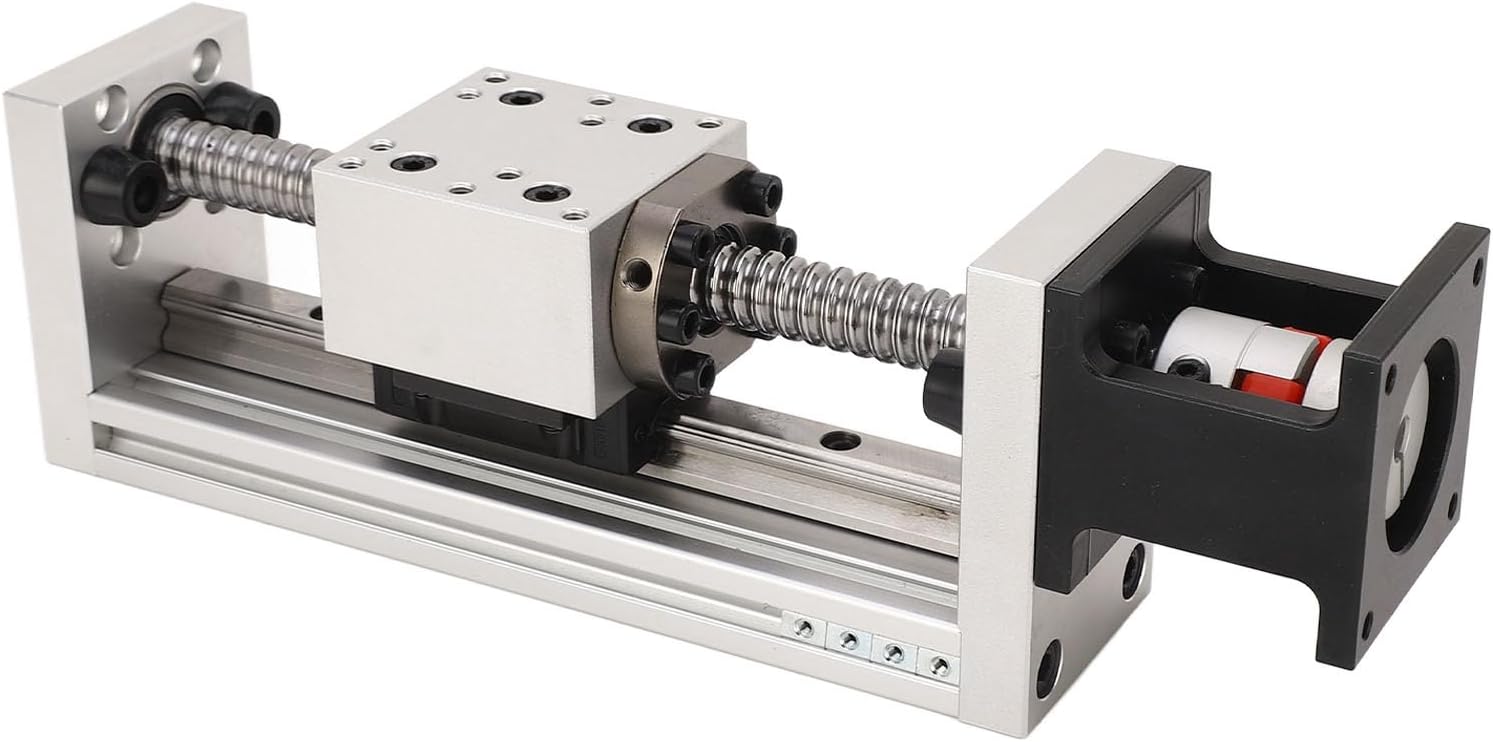

Ball Screw Slide Table Linear Motion Guide Rail Sliding Stage for CNC Equipment 200mm Stroke High Load Capacity Precision Control

[ADVANTAGES] This slide table offers high horizontal and vertical load capacity, precise locating accuracy, efficient performance, and excellent stability.[SINGLE GUIDE RAIL] The single guide rail design ensures stable and low-noise control, making it suitable for X, Y, and Z axes applications.[APPLICABLE MOTOR] Compatible with 57 86 stepper motor, 100W 200W 400W servo motor, this slide table provides versatile motor options.[WORKING RANGE] Featuring a 1605 ball screw, the slide offers a 200mm effective stroke and a maximum speed of 800mm/s for high efficiency.[APPLICATIONS] Ideal for automatic turning equipment, DIY CNC milling machines, detection equipment, optical measurement, fine tuning, and mechanical locating.Spec:Item Type: Linear Slide TableLinear Guide Rail: 1 x HGR15, 1 x HGW15Stroke: Approx. 200mm / 7.9inScrew Specification: Ball Screw 1605Locating Accuracy: ±0.03mmLead Screw: T16Maximum Speed: 800mm/sMaximum Unloading Gravity: Horizontal: 40KG / 88LB, Vertical: 20KG / 44LBPackage List：1 x Linear Slide TableNote：:44 x 13 x 8 centimetres:44 x 13 x 8 centimetres#611:#611

• 12V DC Linear Actuator: Stroke length = 8 inches (200 mm); Stroke speed = 0.47 inches/second (12 mm/second); Thrust 900 N (200 lb); IP66 waterproof rating, suitable for outdoor environments. Noise level below 45 dB, designed to protect the hearing of family and neighbors.
• Instantaneous Switch: Reverse polarity rocker switch with ON/ON operation, actuating only when a finger presses the up or down rocker switch. The DC load stops operating when the switch is released. The switch is rated for 25 amps and has a maximum voltage of 250 volts, meeting the needs of large DC loads.
• Easy Installation: Linear actuator solutions are suitable for virtually any industrial machinery or automation equipment. Easy to install and integrate into most control systems, such as Arduino, control boxes, or any other microcontroller kits.
• Versatile Applications: Suitable for DIY pet feeders, marine, automotive, medical device and engineering industries, massage sofas, recliners, TV lifts, height-adjustable tables, power window openers, etc.
• Easy and safe installation: It can be quickly installed using a bracket and the actuator can be easily connected to a 12-volt safe power supply.
